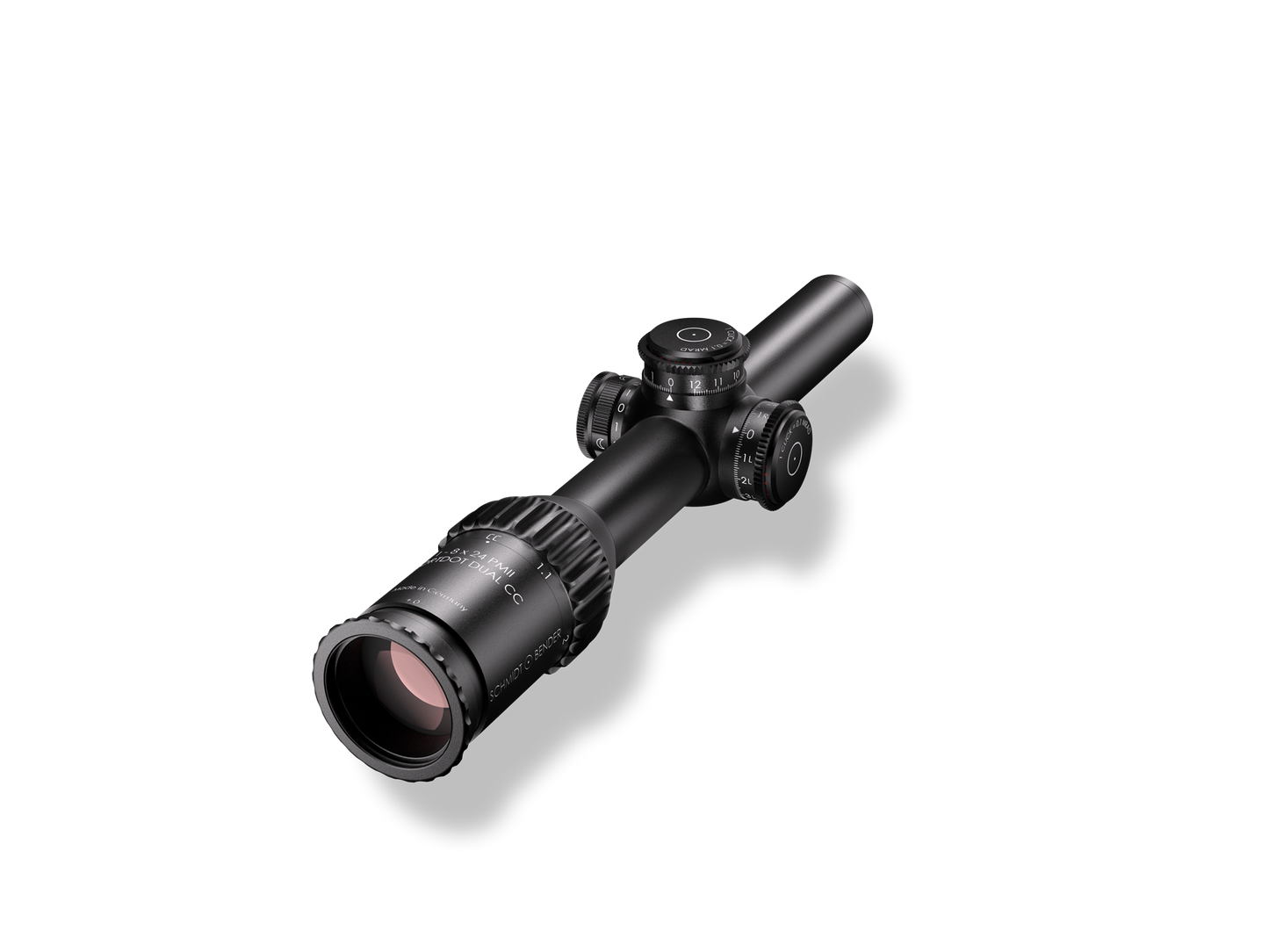

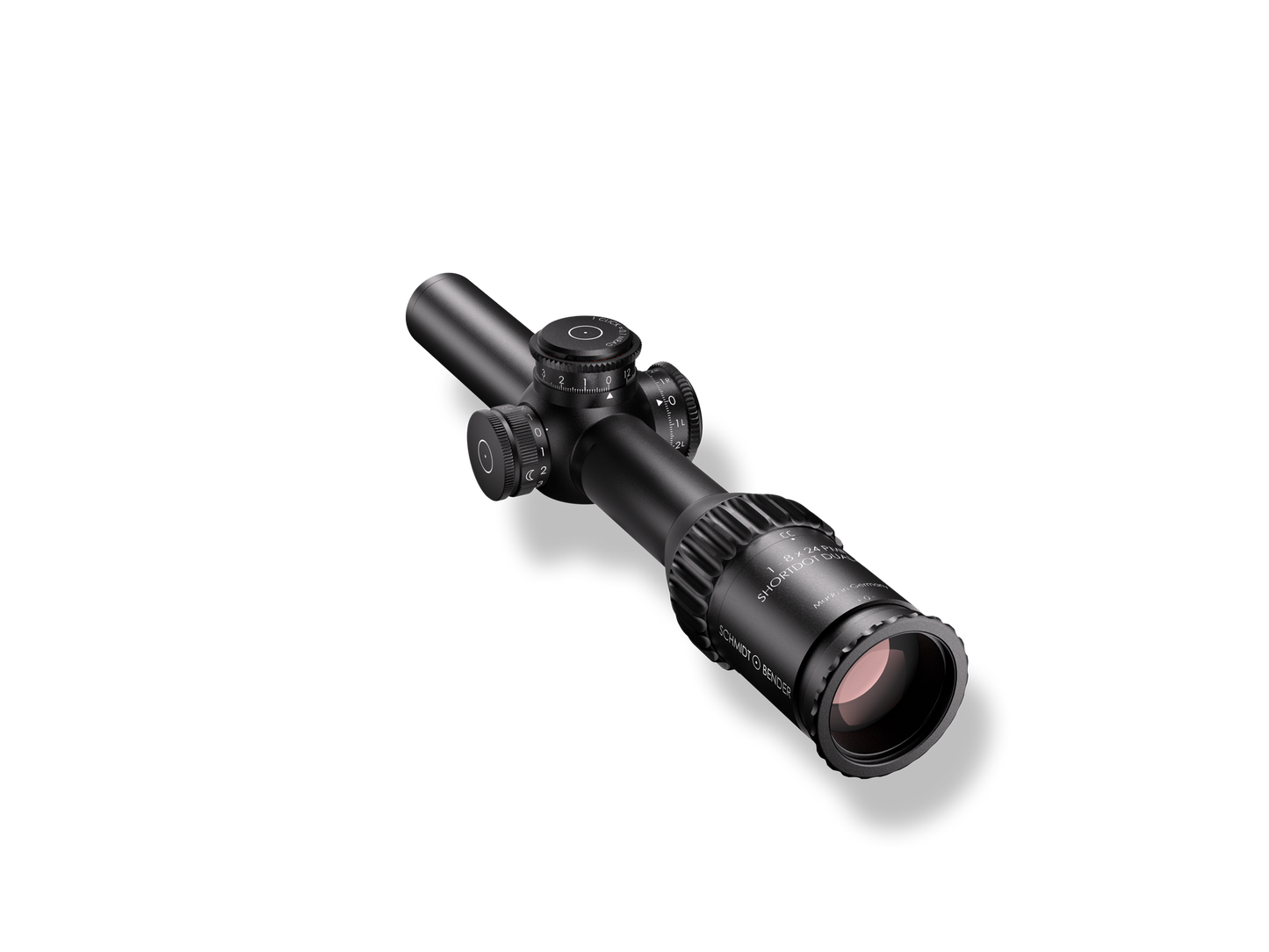

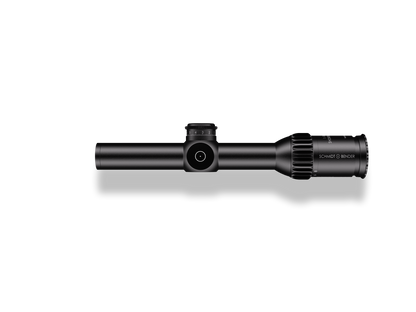

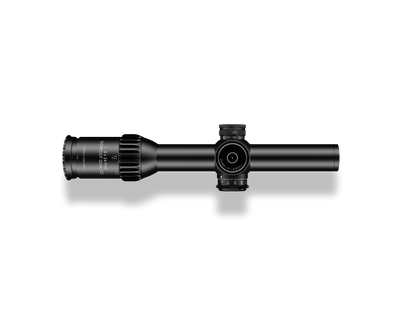

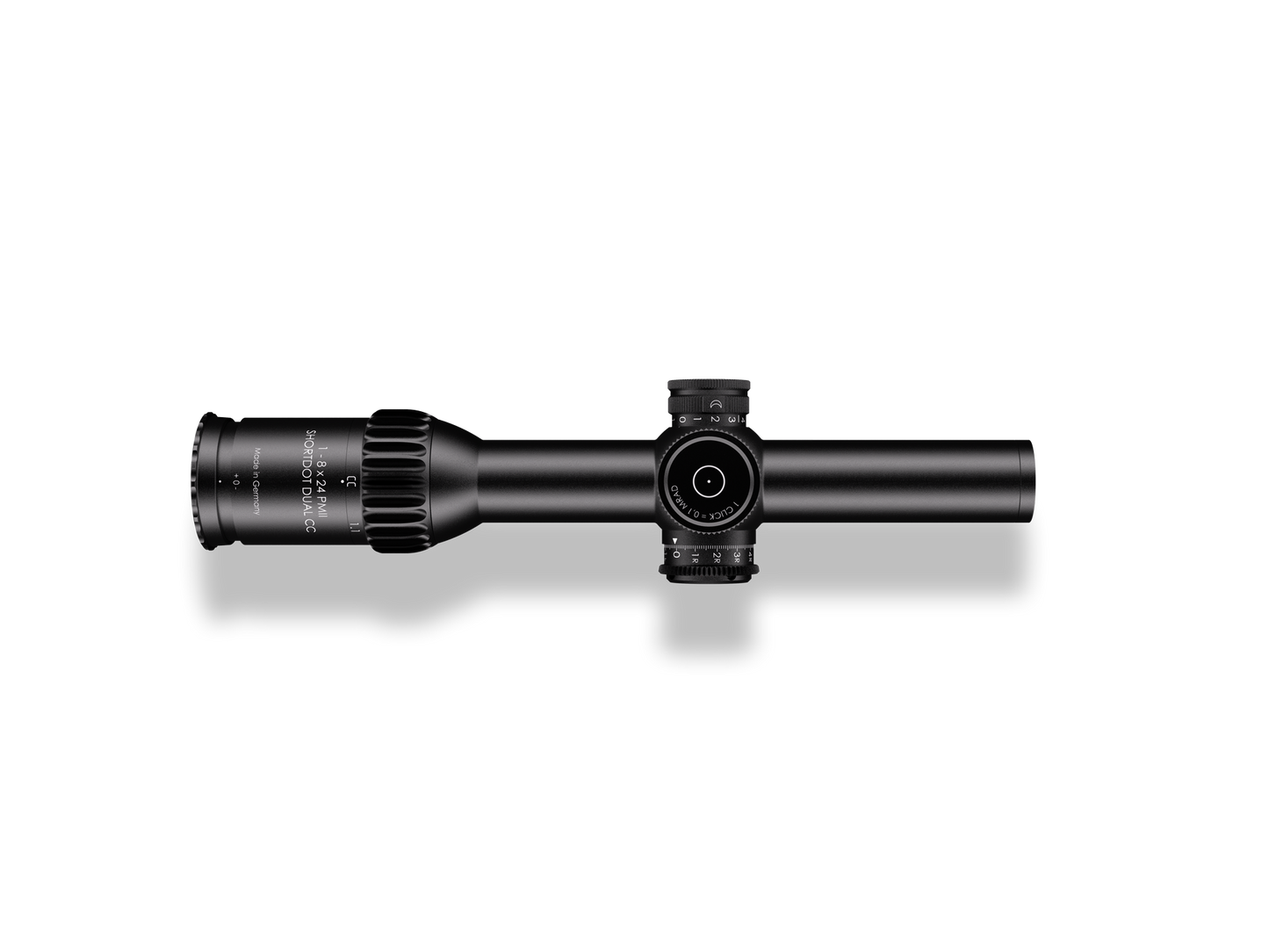

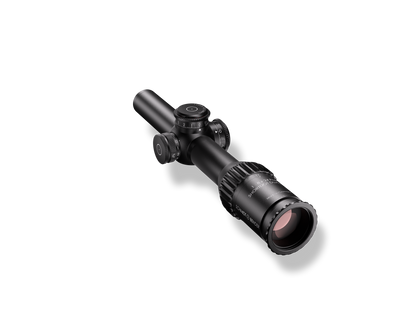

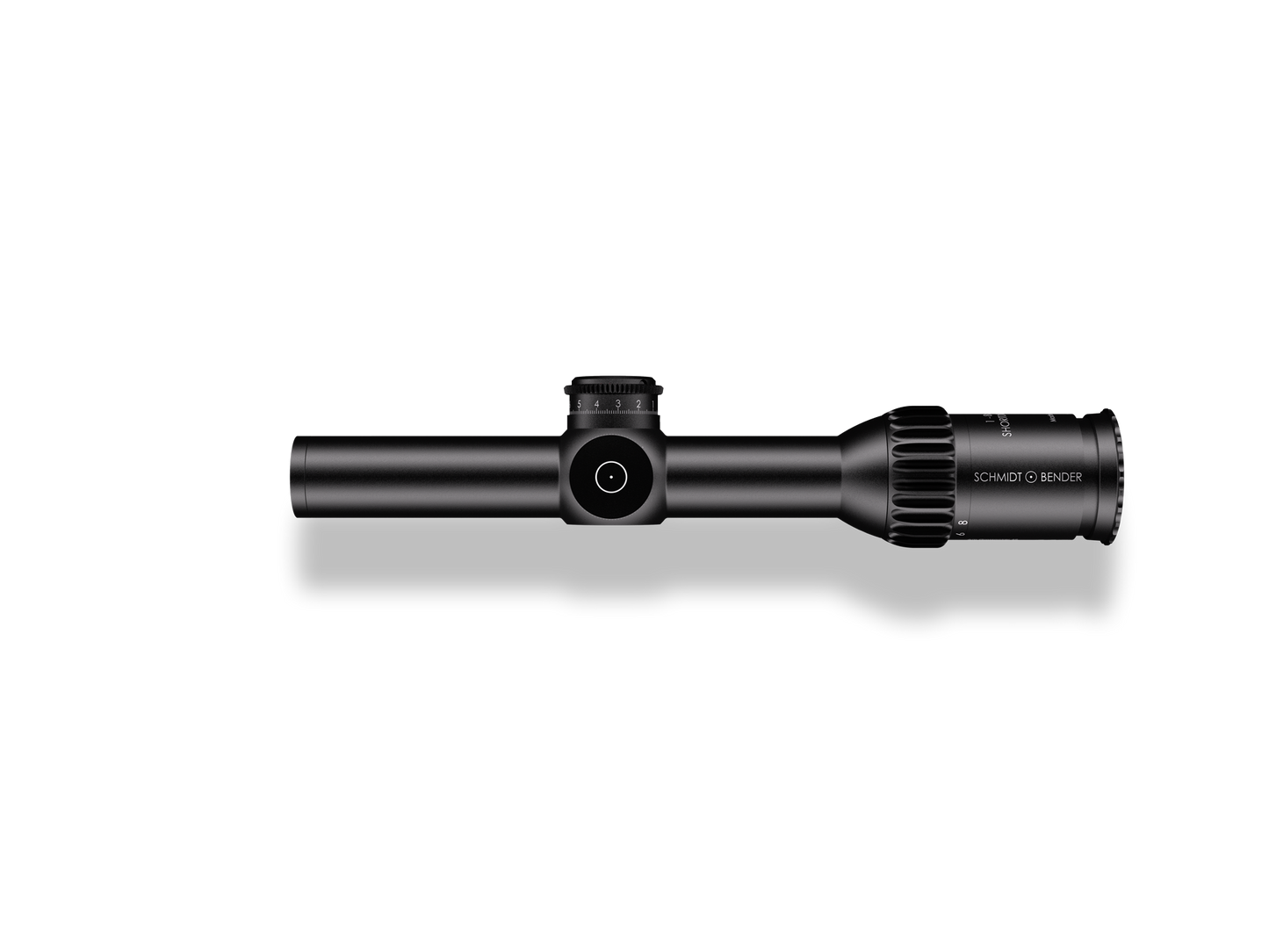

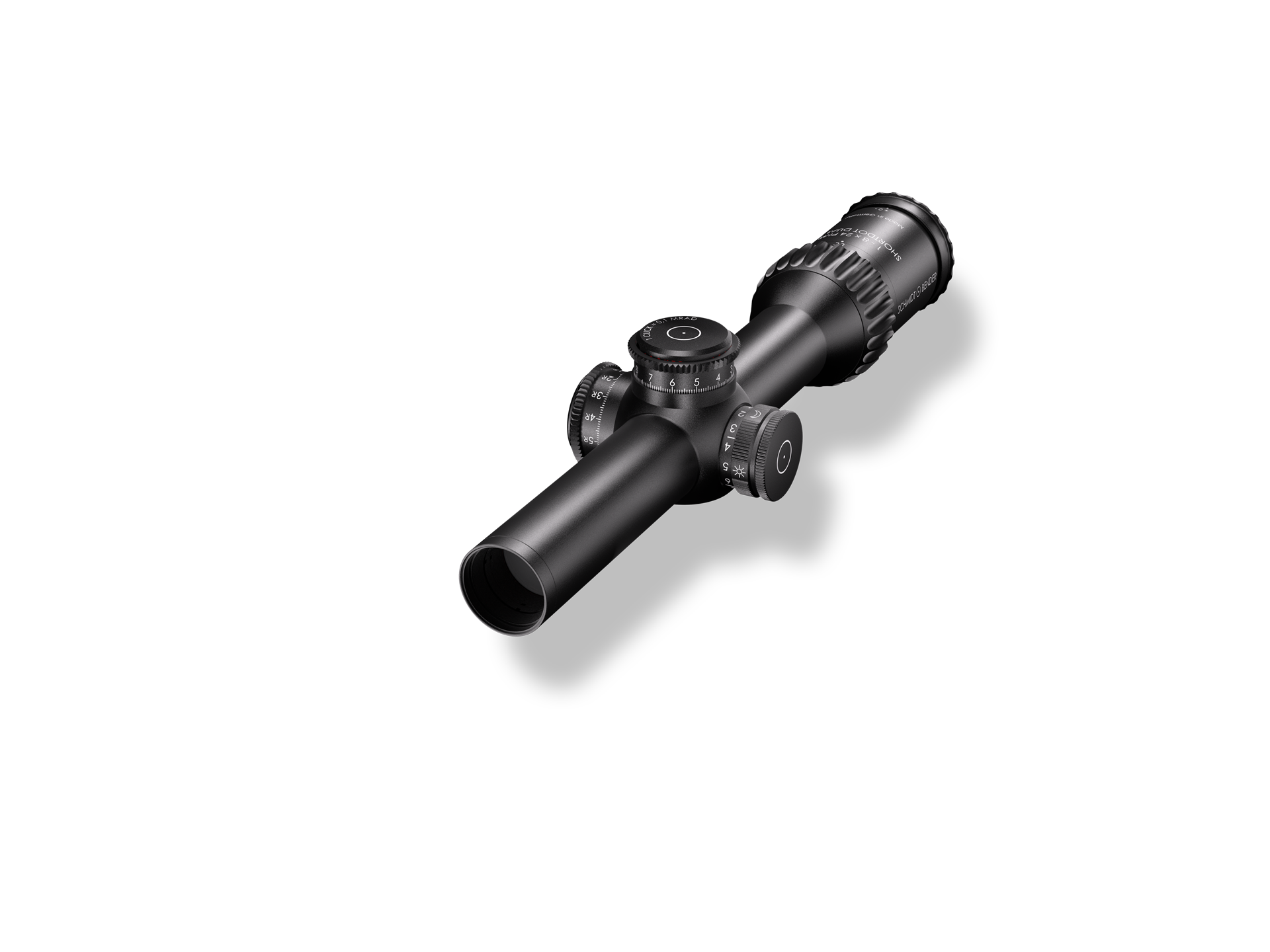

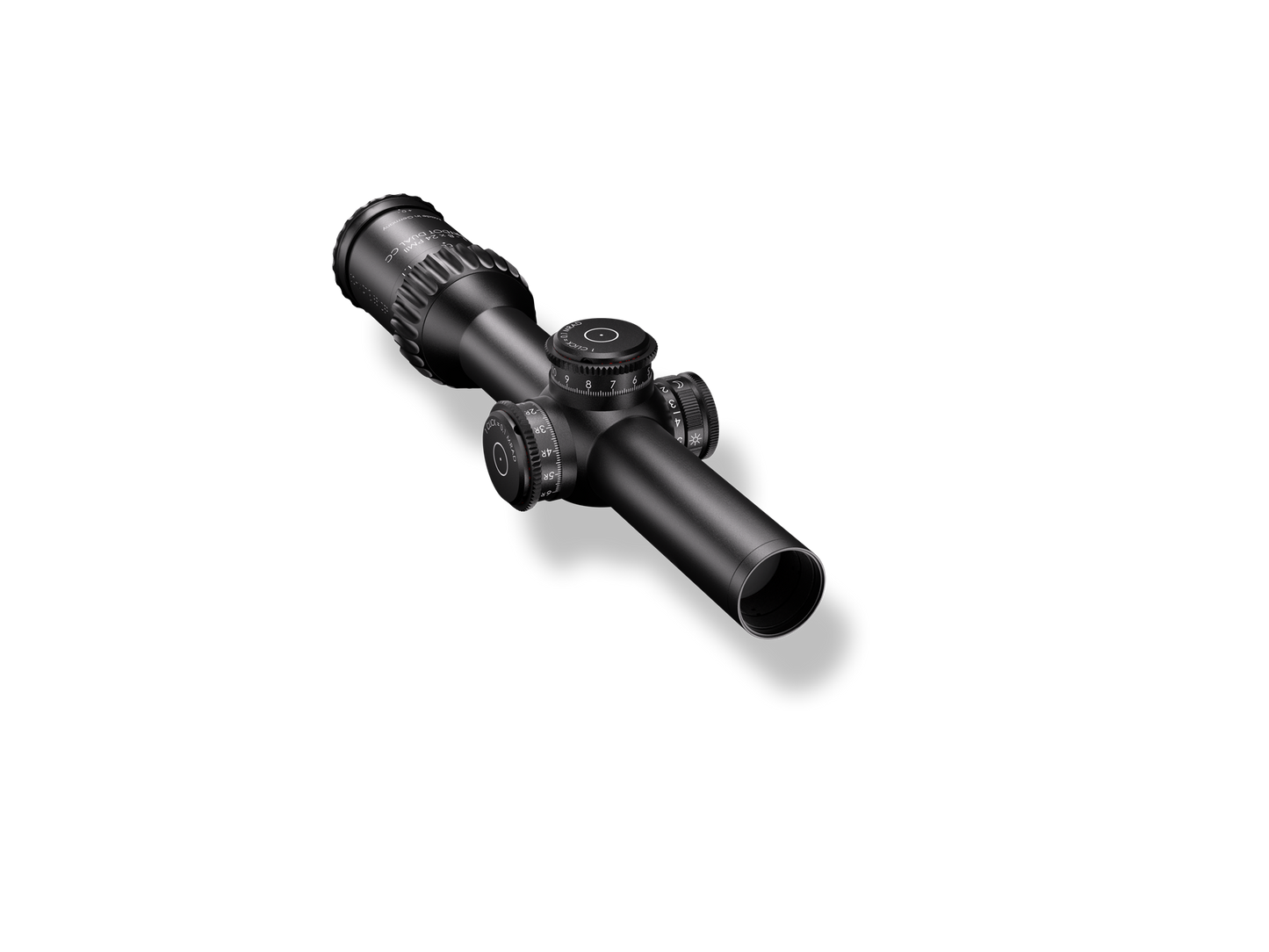

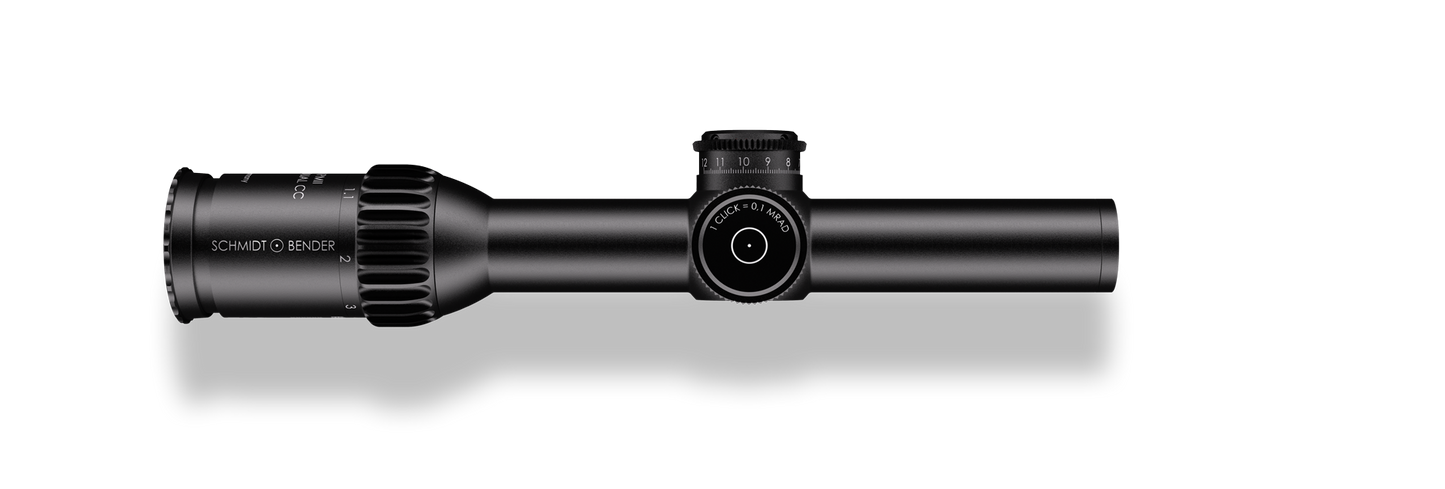

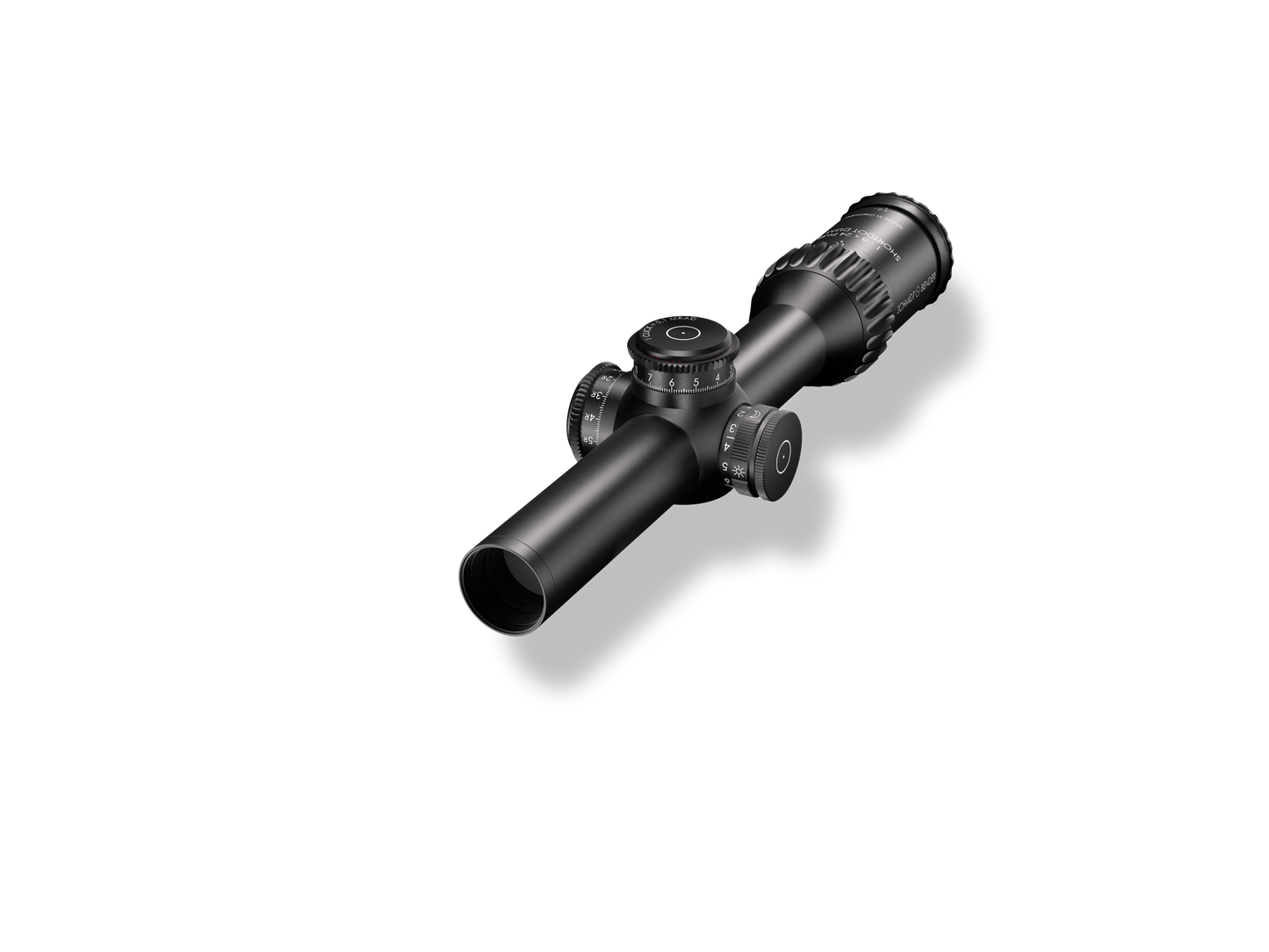

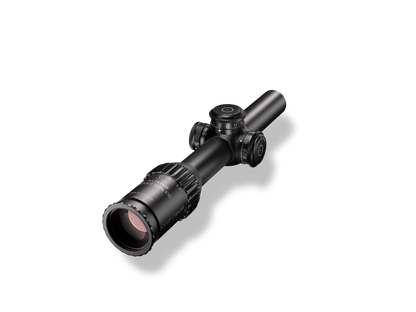

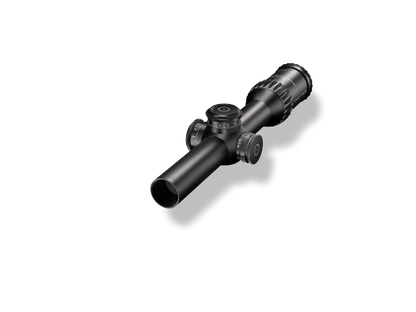

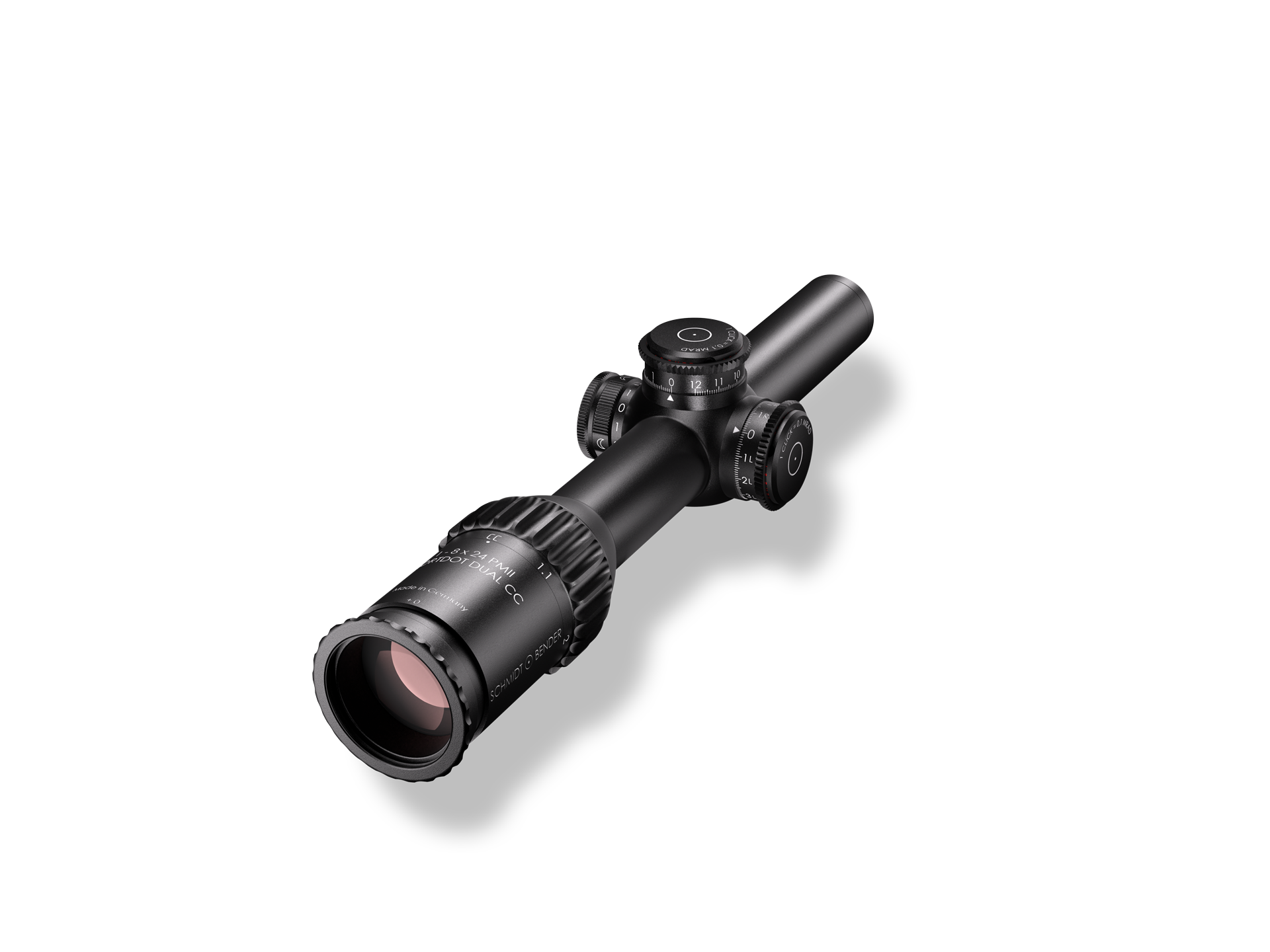

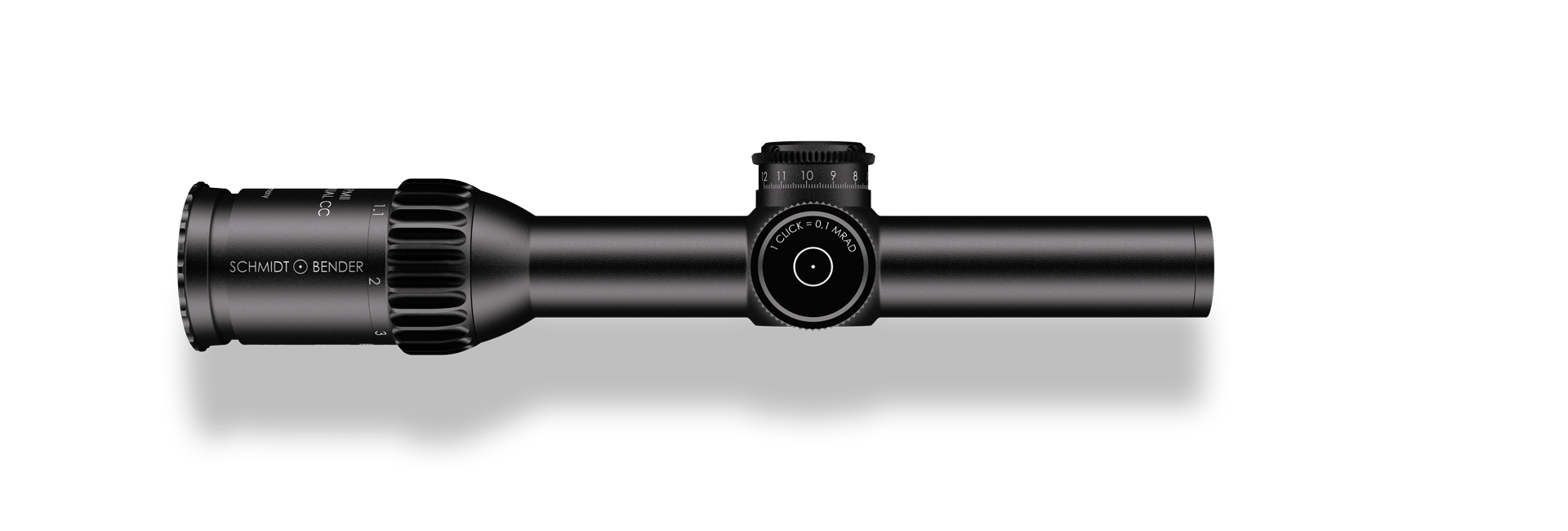

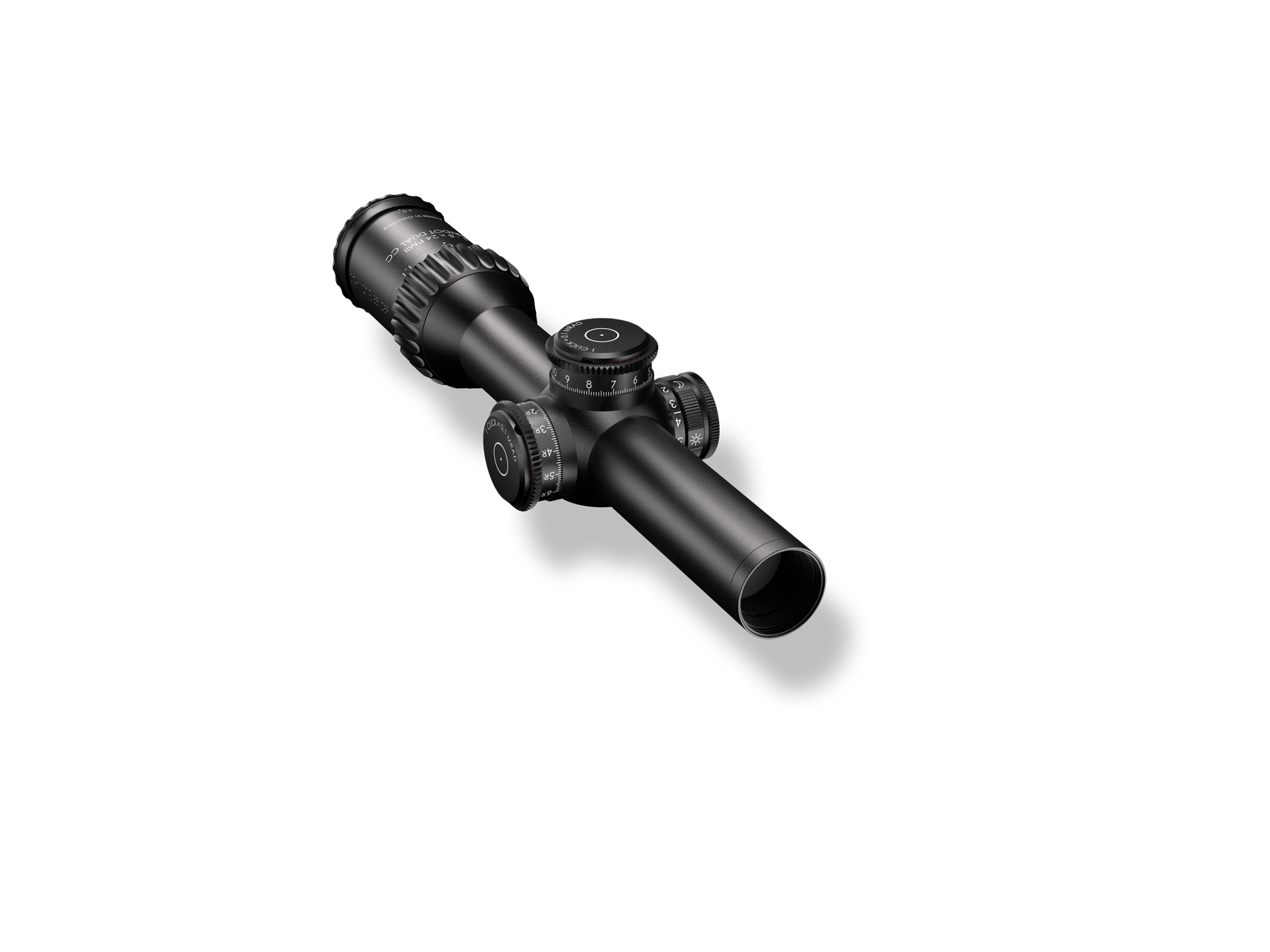

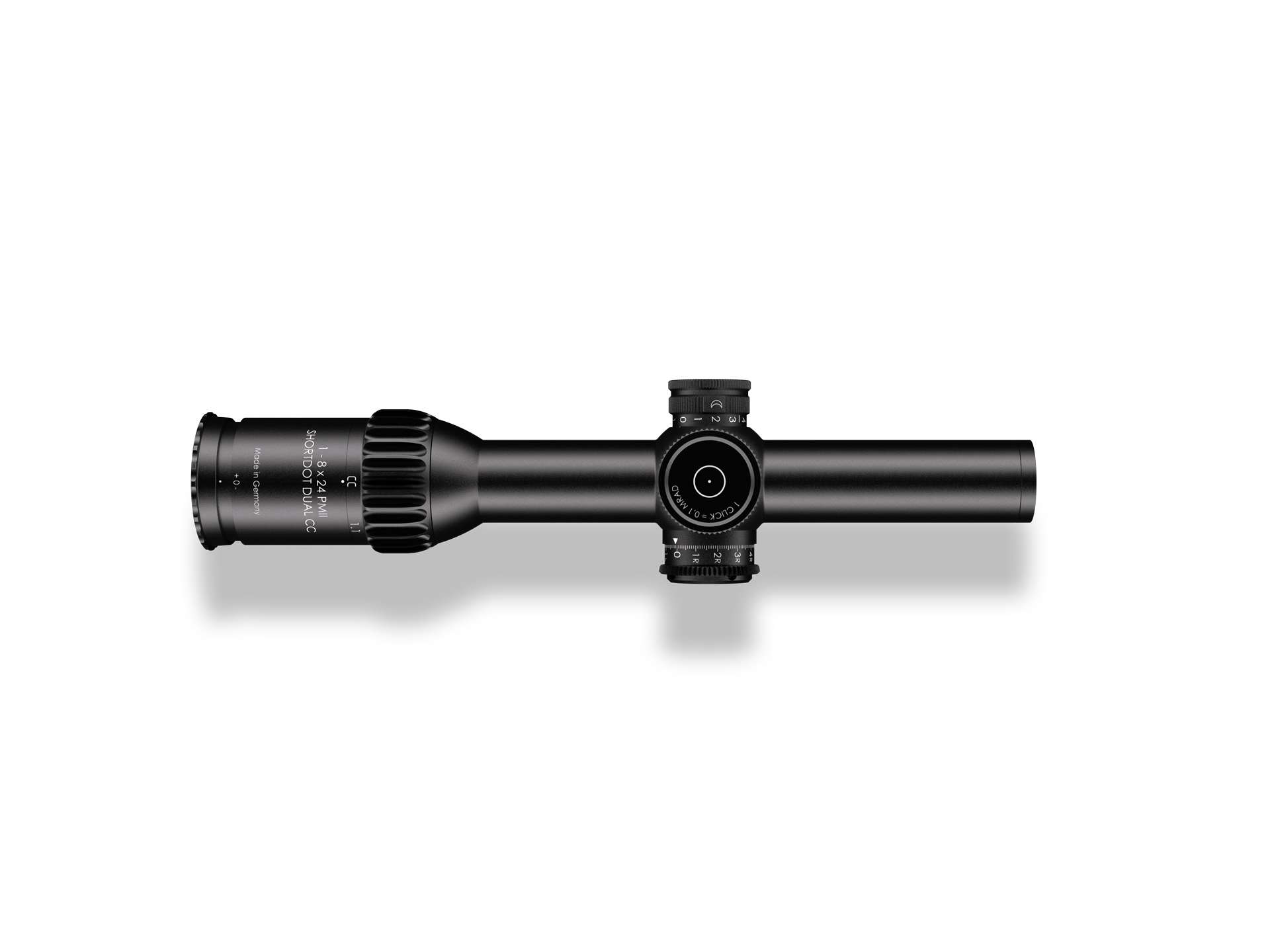

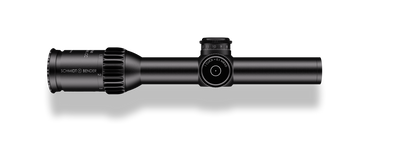

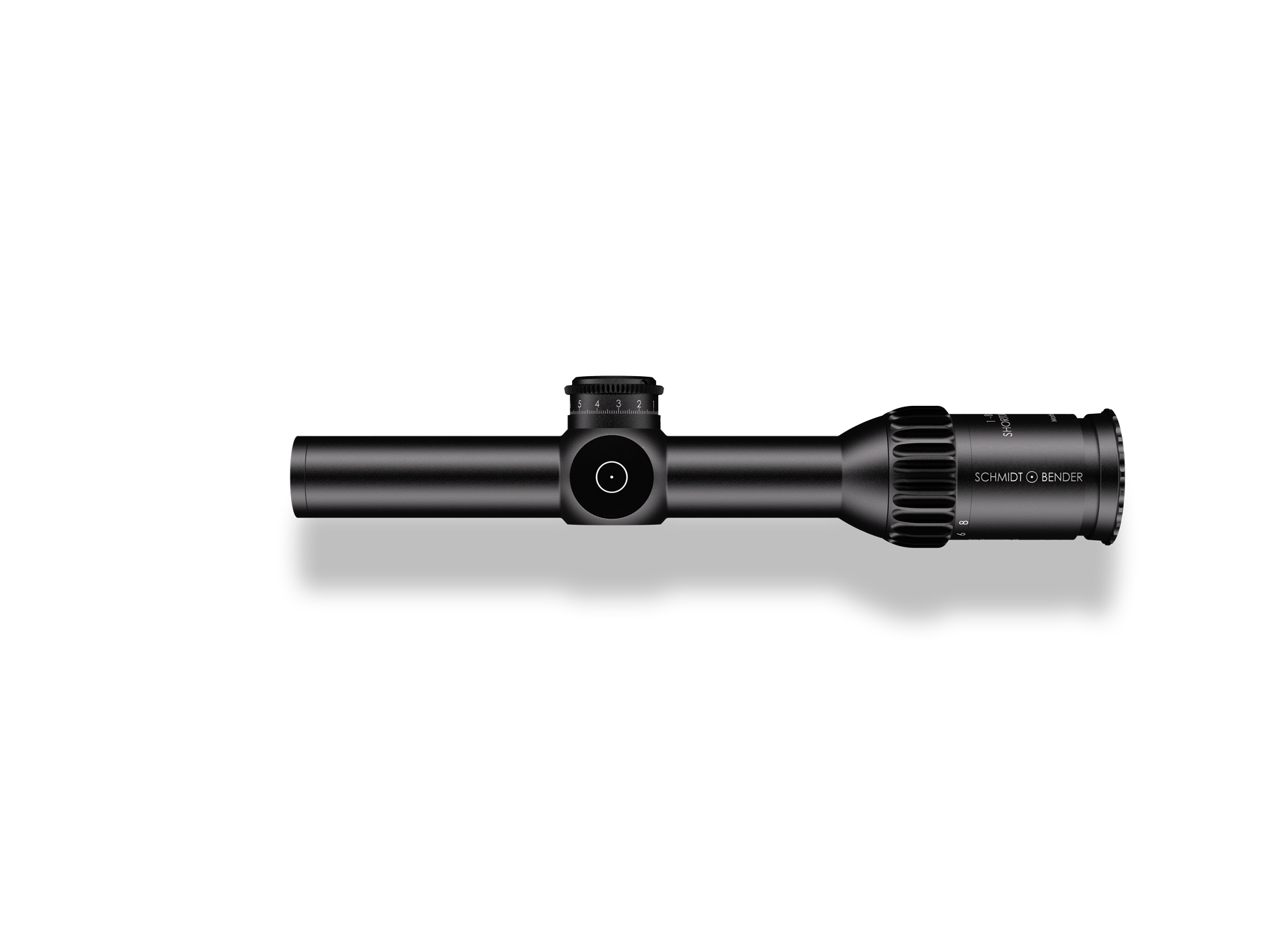

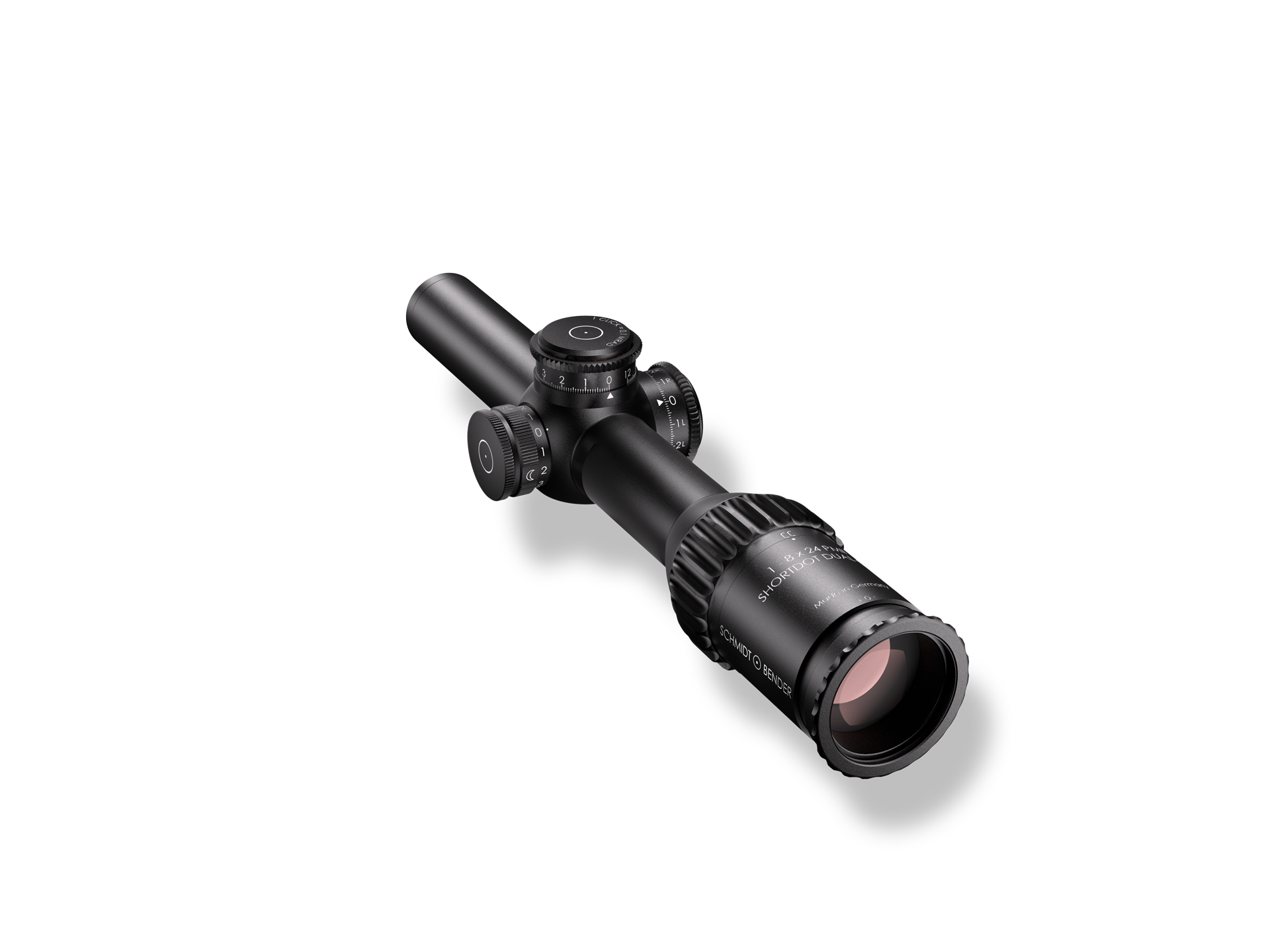

1-8x24 PM II ShortDot Dual CC – Red Dot Speed Meets Precision Optics

The 1-8x24 PM II ShortDot Dual CC is the ultimate hybrid optic—combining the lightning-fast target acquisition of a red dot sight with the clarity and precision of a riflescope. Designed for short- to medium-range engagements, this scope is a top choice for both dynamic and static shooting applications. It excels on everything from assault rifles to designated marksman platforms.

Battle-proven and field-trusted, the ShortDot Dual CC was selected in 2016 for the German Armed Forces' "G28 Patrol" program and later adopted by the French military in 2019 for the FPSA sniper platform. It’s now in use with NATO forces, U.S. Special Operations, and elite anti-terror units around the world.

At 1x, the patented Close Combat Mode (CC Mode) provides a parallax-free experience with a wide eye box—perfect for rapid close-range shots. At 8x, its optical resolution of just eight angular seconds ensures a razor-sharp image, even for precise long-range shots. Built for extremes, this scope is shockproof, temperature-resistant down to –46 °C, and has passed the rigorous Six Orientation Drop Test.

Key Features at a Glance:

• Magnification: 1–8x – optimized for CQB and mid-range engagements
• Objective Lens: 24 mm – compact yet high-performing
• Exit Pupil Diameter: 9.8–3.0 mm (0.39–0.12 in)
• Eye Relief: 90 mm (3.54 in) – consistent and safe eye positioning
• Field of View: 35.3–4.9 m/100 m (105.9–14.7 ft/100 yd)
• Field of View (°): 20.0–2.8 – exceptionally wide for fast acquisition
• Twilight Factor: 3.3–13.9 – solid performance from dusk till dawn

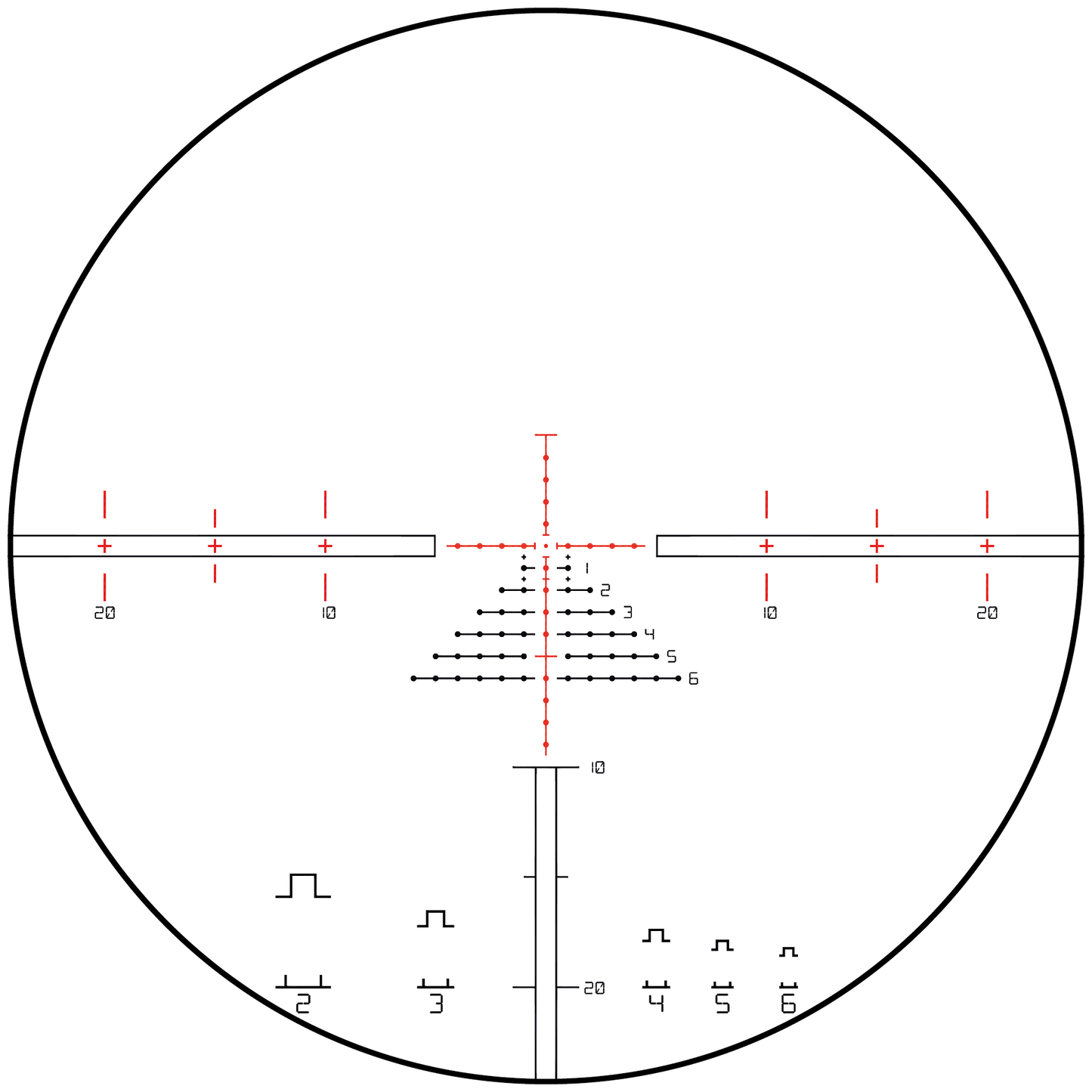

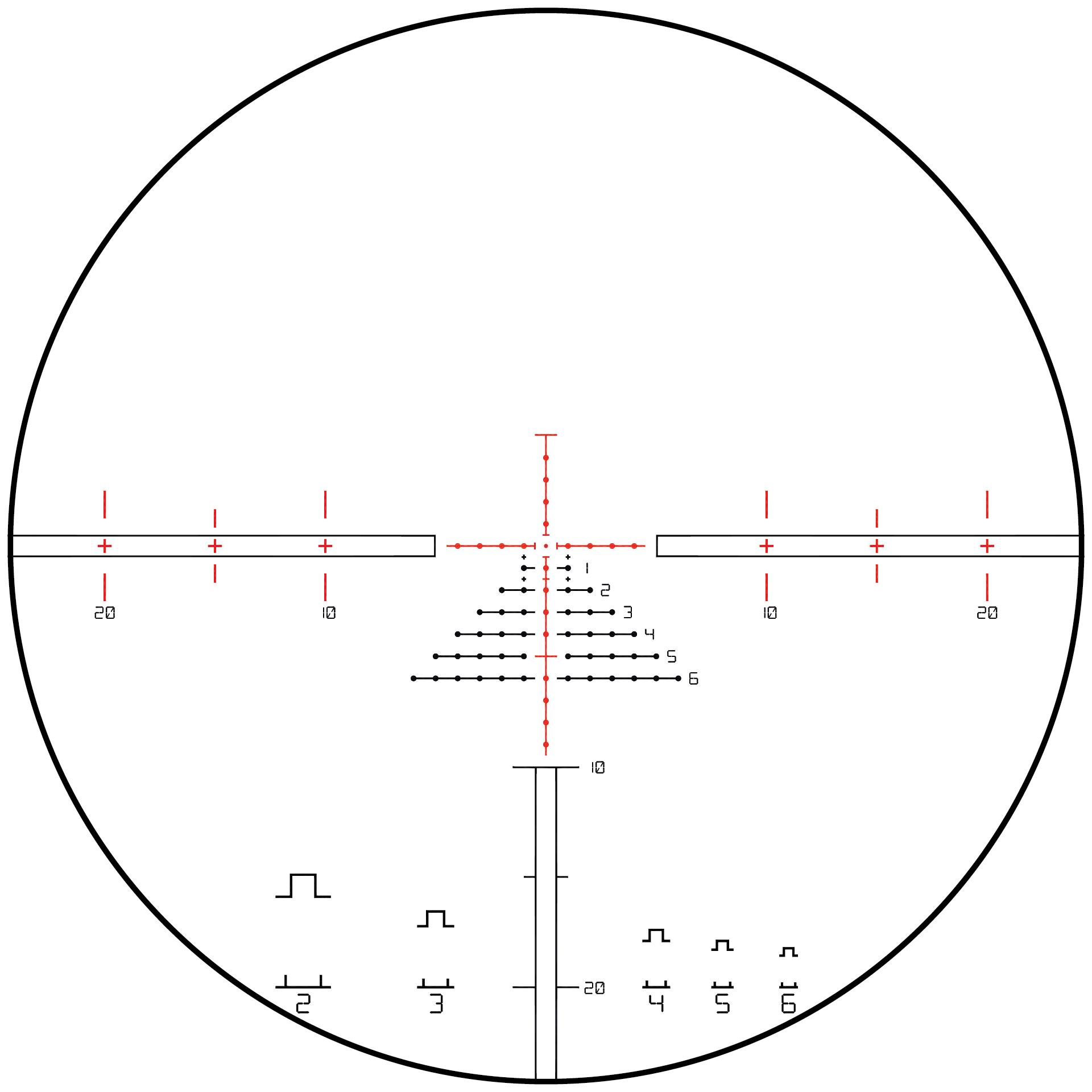

• Illuminated Reticle: Yes – 6 brightness levels for reticle and 6 for red dot
• Focal Plane: Dual – reticle in First Focal Plane + red dot in Second
• Diopter Adjustment: -3 to +2 dpt
• Main Tube Diameter: 30 mm – fits standard ring mounts
• Length: 293 mm (11.54 in)
• Weight: 635 g (22.40 oz)
• Turrets (Elevation/Windage):
• Type: ST MTC LT / ST ZC LT (MRAD)
• Click Value: 0.1 MRAD
• Elevation Range: 23 MRAD (internal) / 12 MRAD usable
• Windage Range: ±6 MRAD (internal: 23 MRAD)
• Turret Rotation: Counterclockwise
• Parallax Adjustment: Fixed – optimized for 100 m (or 300 m on request)
• Mounting System: Ring mount compatible

Why Choose the 1-8x24 PM II ShortDot Dual CC?

If you're operating in a fast-paced, high-stakes environment, the 1-8x24 ShortDot Dual CC gives you every advantage. Whether it’s clearing tight corners or engaging targets at 300 meters, this scope brings combat-ready durability, cutting-edge optics, and field-proven performance into one compact package. Trusted by the world’s most elite military and special forces, it’s the gold standard for professionals who demand the best of both worlds—speed and precision.
