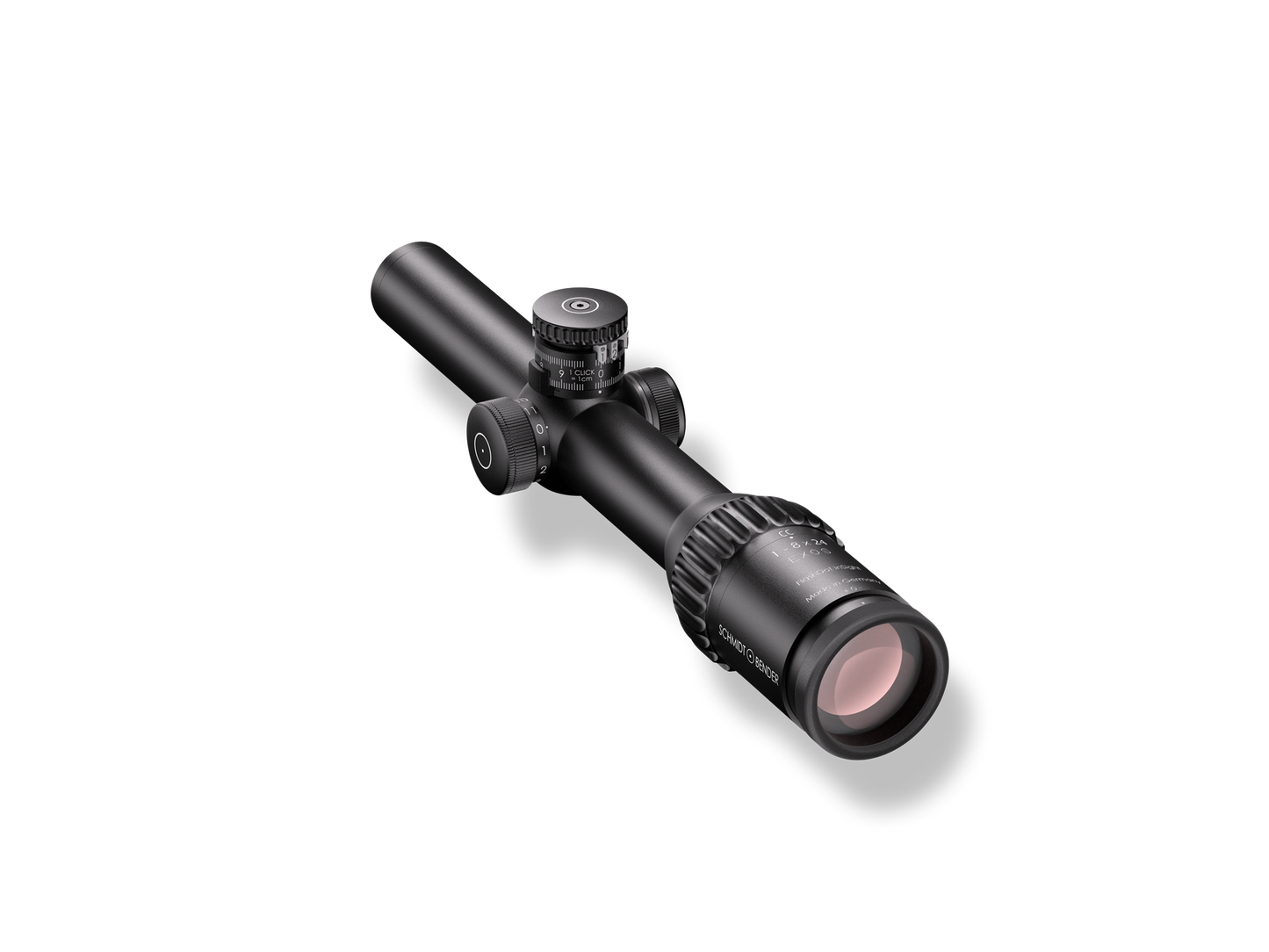

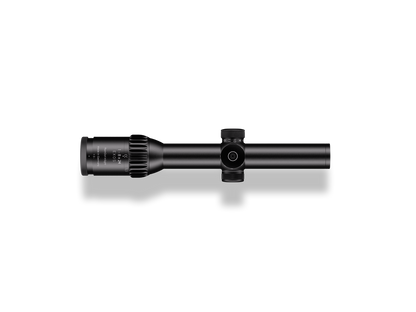

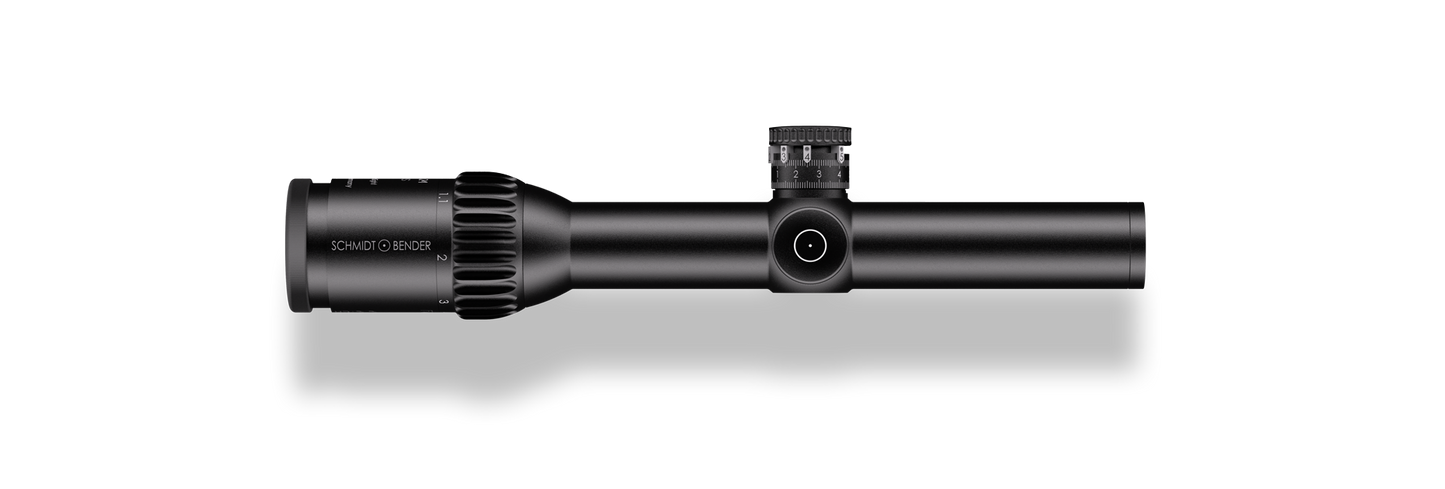

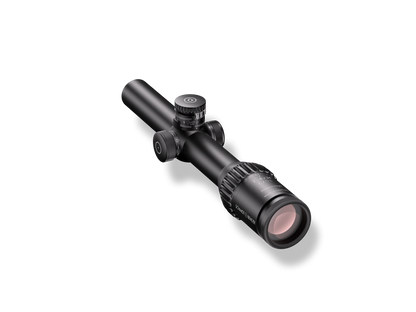

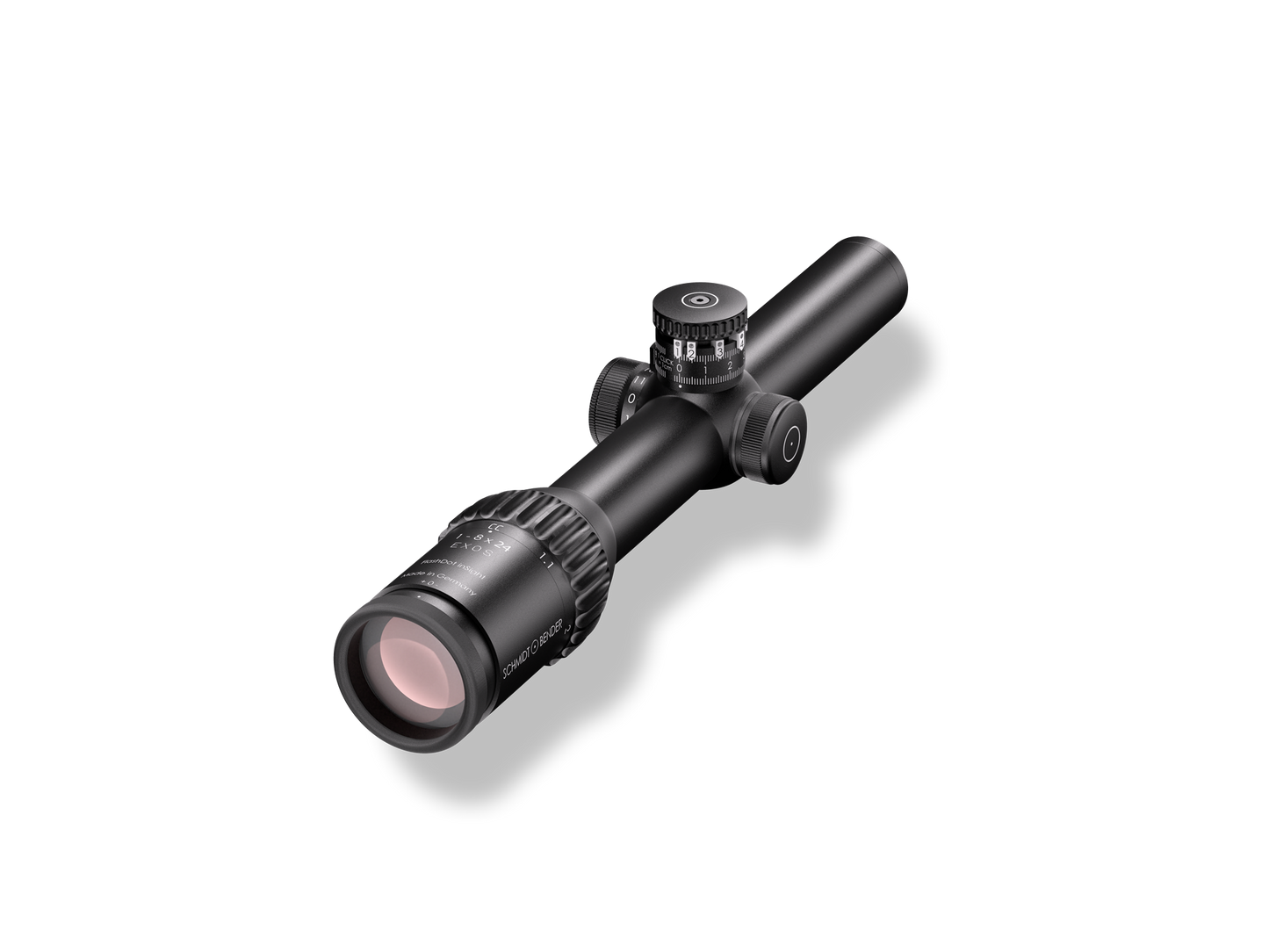

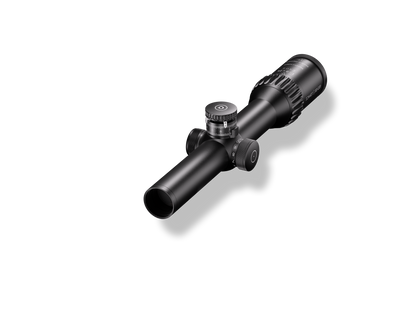

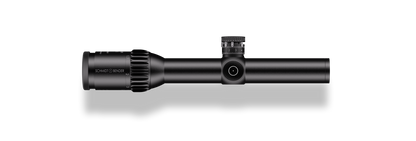

Schmidt & Bender 1-8x24 Exos LM CQB2 TMR 1cm cw ASV II-B LT / Posicon CT

© Smith & Bender. All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form without prior written permission.

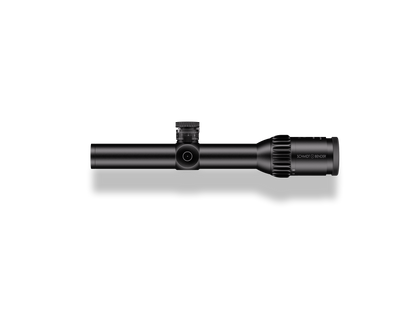

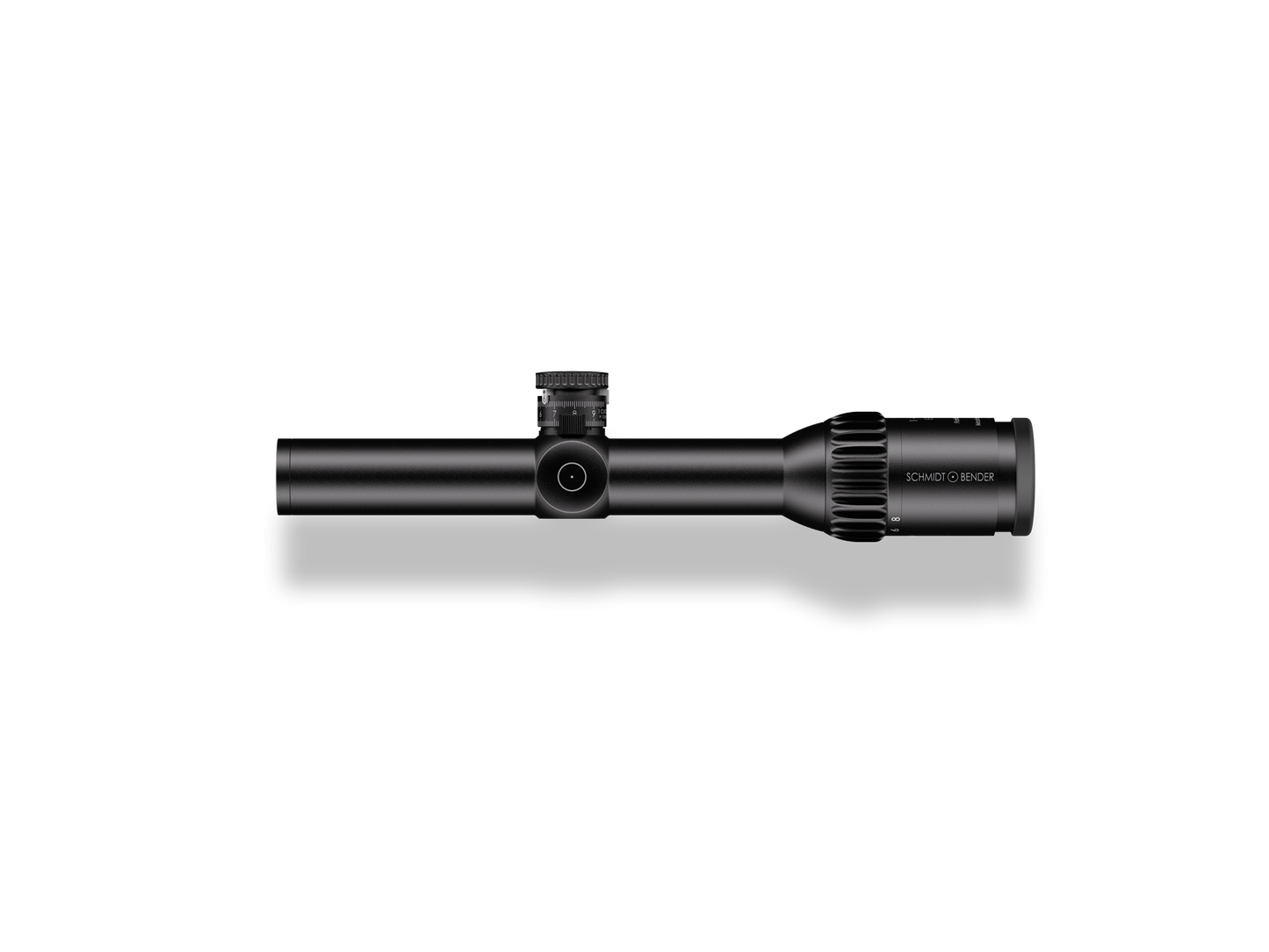

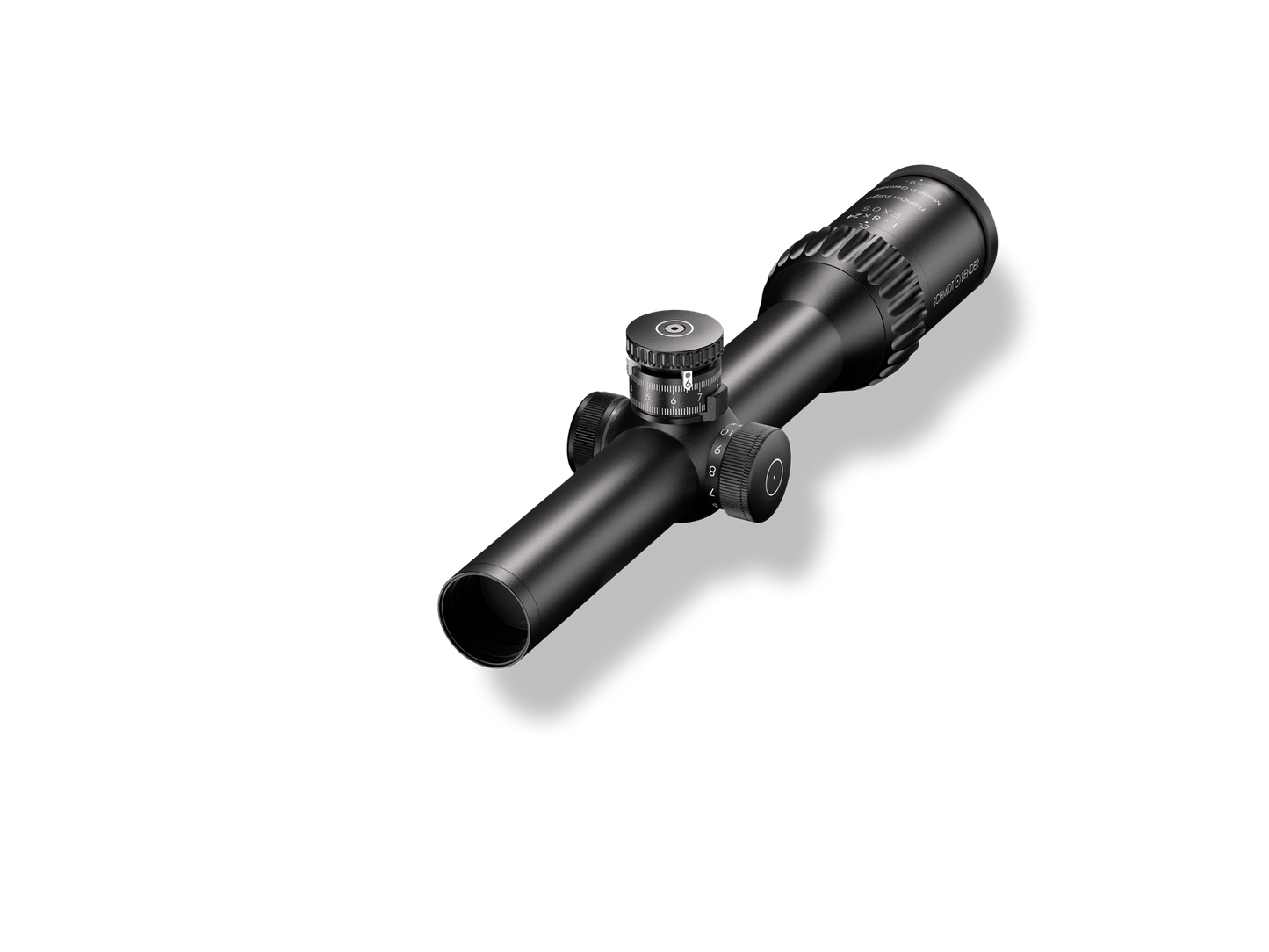

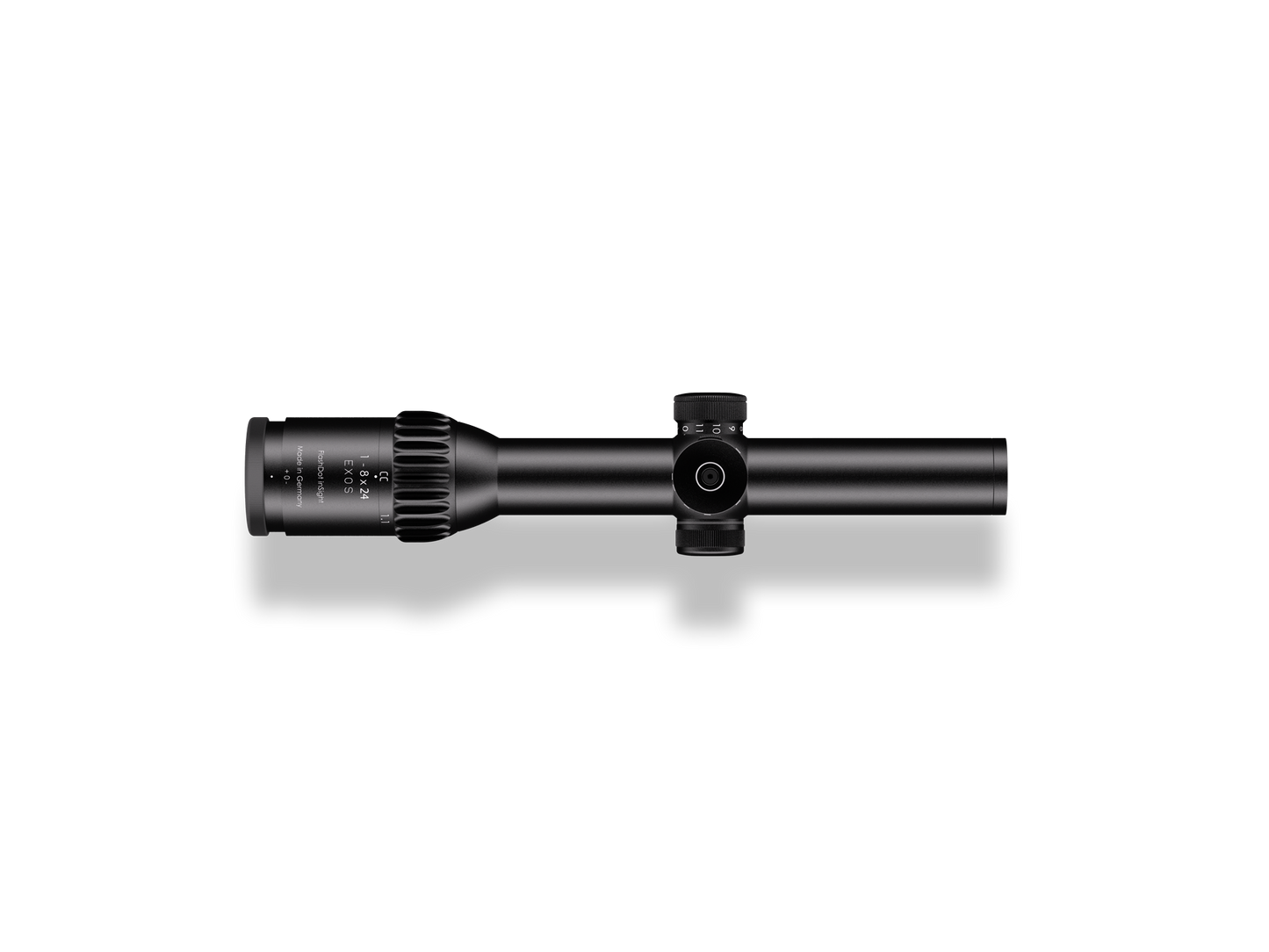

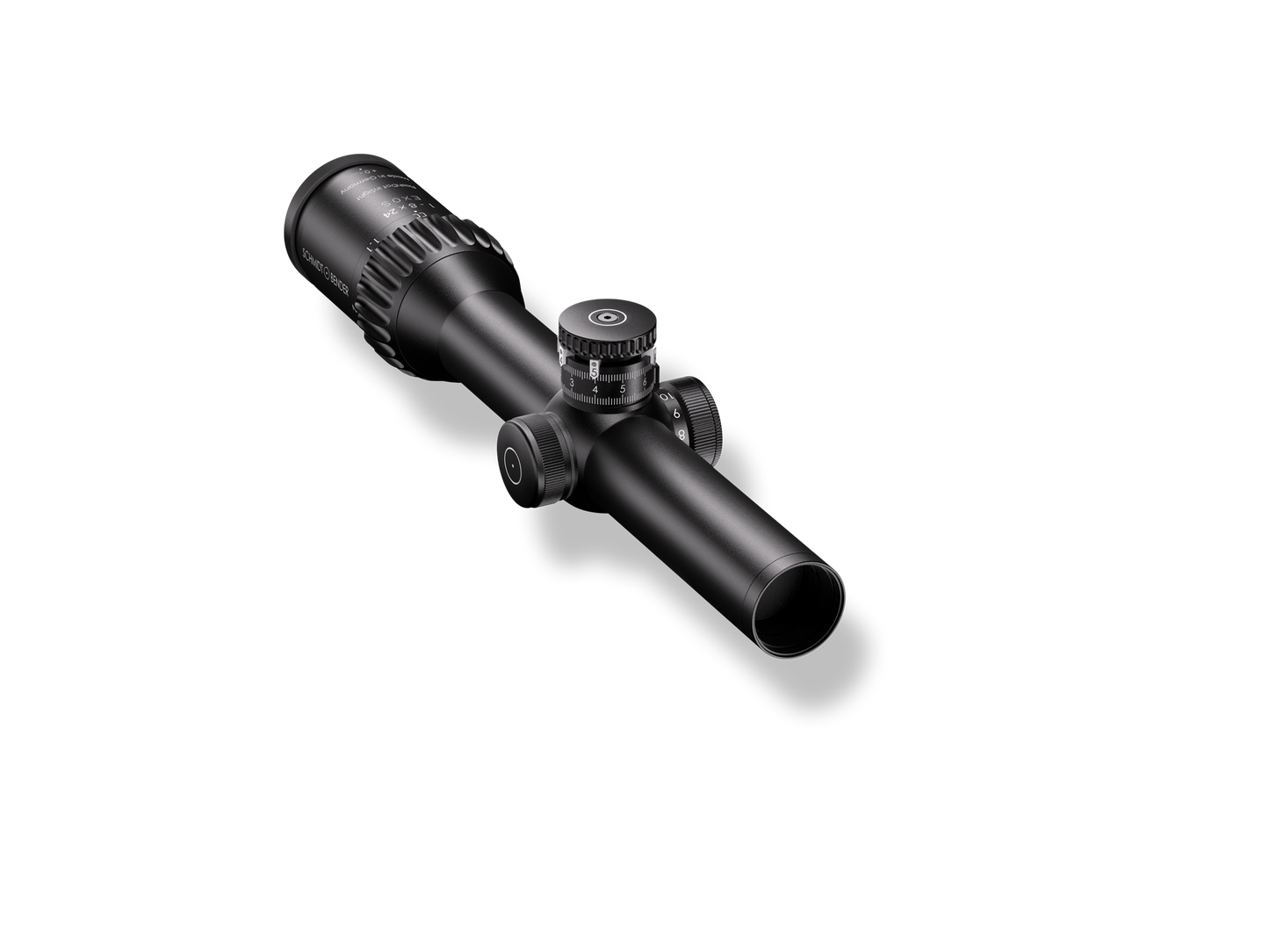

1-8x24 Exos (ASV II-B LT) – Compact Power and Speed for Fast-Paced Hunting

The 1-8x24 Exos with ASV II-B LT turrets is a rugged, compact, and highly adaptable riflescope tailored for stalking and driven hunts, especially when fast target acquisition is essential. Whether you're hunting in your local territory or abroad, this scope is built to keep pace with even the most dynamic scenarios.

Thanks to Schmidt & Bender’s patented CC-Mode, the scope delivers true 1x magnification, transforming it into a reflex-sight-like optic—ideal for quick, intuitive aiming. When the situation calls for distance, the 8x zoom allows you to accurately reach further targets, making the Exos a true all-rounder.

Key Features:

• Magnification: 1-8x for extreme versatility in both close and mid-range encounter
• Patented CC-Mode: Offers a true 1x experience for red-dot-style shooting speed
• Exceptional field of view: 35.3–4.9 m/100 m (105.9–14.7 ft/100 yd) ensures great awareness
• Exit pupil: 9.6–3.0 mm (0.38–0.12 in) for optimal brightness and clarity
• Eye relief: 90 mm (3.54 in) for safe, comfortable use with all calibers

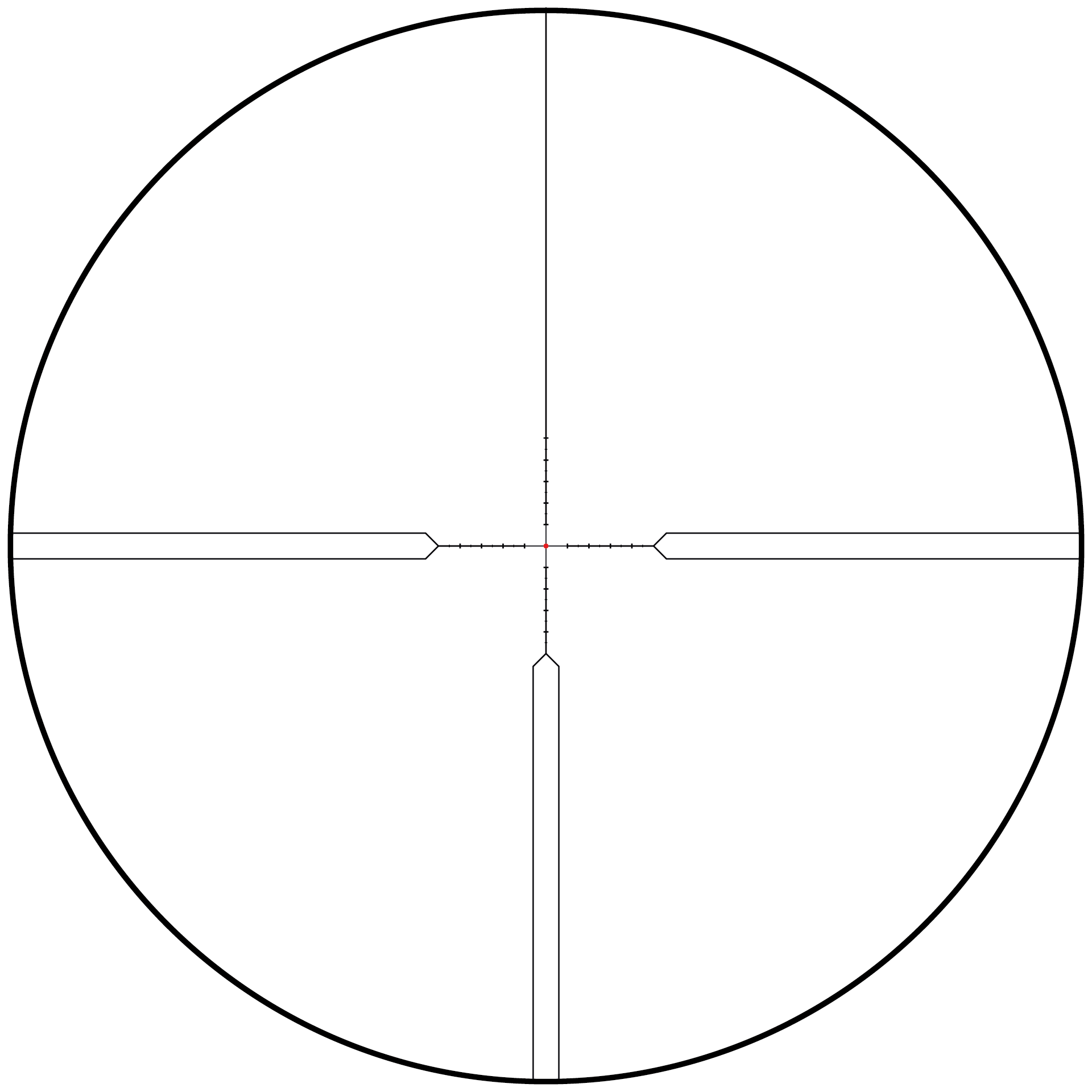

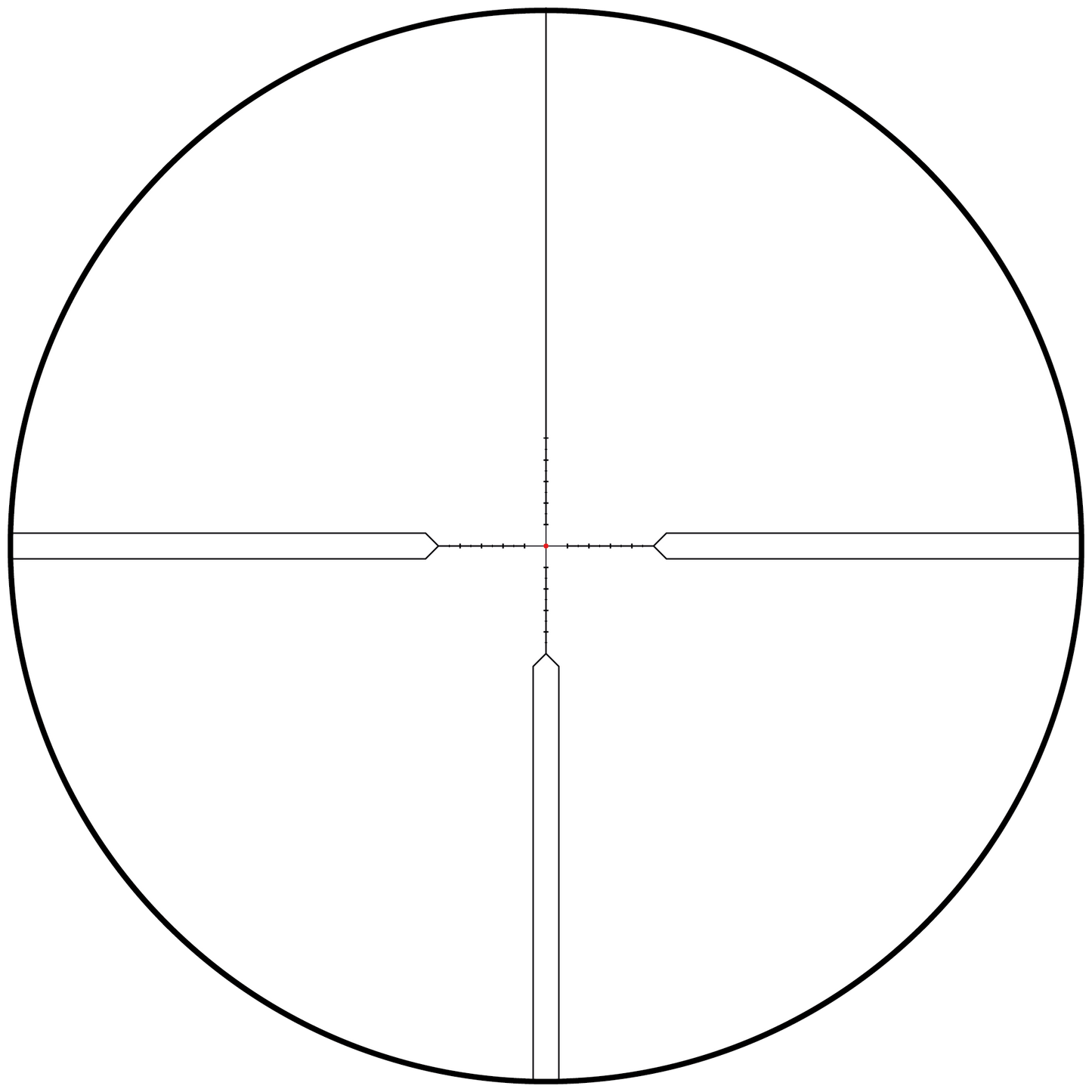

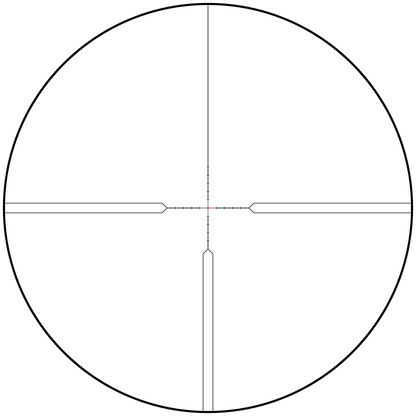

• Illuminated reticle: 11 brightness levels for clear aiming in all lighting conditions

·       Turret system:

·       Elevation: ASV II-B LT

·       Windage: Posicon CT

·       Click value: 1 cm/100 m

·       Elevation adjustment range:

o    Total: 410 cm/100 m

o    Effective: 100 cm/100 m

·       Windage adjustment range:

o    Total: 305 cm/100 m

o    Effective: ±152 cm/100 m

•          Twilight factor: 3.3–13.9 for dependable performance at dawn and dusk
•        Main tube diameter: 30 mm for strength and easy mounting
•        Mounting system: Ring mount
•        Parallax adjustment: None (preset for simplicity)
•        Length: 293 mm (11.54 in)
•           Weight: 605 g (23.34 oz)
•        Turret rotation: Clockwise
